| Merknaam: | BRAND CHINA REPLACMENT BRONZE BUSHING 500 GUIDE BUSHINGS |
| Modelnummer: | Ringen van de brons ontmoetten de Grafietstop de tolerantie |
| MOQ: | 300 Stuk/Stukken (Min. Orde) |
| Prijs: | $0.10 - $3.00 / Pieces |
| Betalingsvoorwaarden: | TT VOORAF, L/C, Western Union |
| Toeleveringsvermogen: | CNC Bronslagers online • De Fabrikanten van douaneringen • Glijdende Lagersleveranciers |

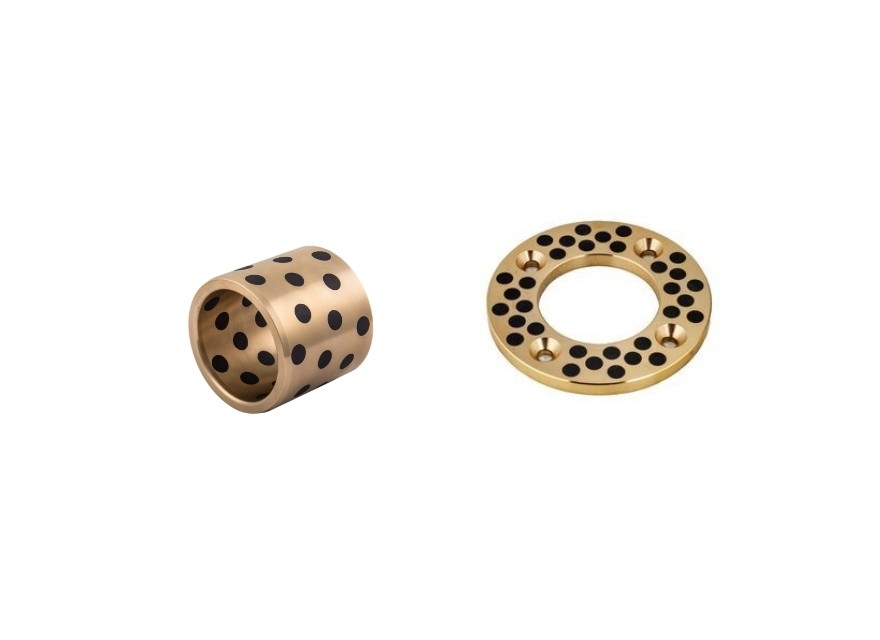

De CuZn25Al5Mn4Fe3 materiaal JDB olievrije bussen, gebaseerd op de norm, is een hoogwaardige bussen ontworpen voor smeervrije operaties.Deze materialen zijn uitstekend slijtvast, corrosiebestendigheid en mechanische sterkte, waardoor betrouwbare en langdurige prestaties worden gewaarborgd.
De JDB-buis, met zijn olievrije ontwerp, elimineert de noodzaak van regelmatig smeren, waardoor de onderhoudskosten en de bedrijfsonderbrekingen worden verminderd.Deze eigenschap maakt het ook geschikt voor gebruik in omgevingen waar smeermiddelverontreiniging een probleem is.
De naleving van de norm zorgt ervoor dat de buizen aan strenge kwaliteits- en prestatievereisten voldoen.het waarborgen van een consistente en betrouwbare kwaliteit van alle producten.
voor gebruik in motoren, pompen, compressoren of andere roterende machines,het op de norm gebaseerde materiaal CuZn25Al5Mn4Fe3 JDB Oil-free Bushing biedt een robuuste en betrouwbare oplossing voor smeervrije toepassingenDe hoge prestaties en duurzaamheid maken het een betrouwbare keuze voor het behoud van een soepele en efficiënte werking in verschillende industriële omgevingen.
De bronzen buizen van het vaste zelfglijbare lager zijn vervaardigd van centrifuge gegoten hoogsterk legerd messing substraat, hebben het effect van dragende belasting,met een speciale formule met goede zelfglijende eigenschappen van grafiet smeermiddelHet is dus een combinatie van hun respectieve voordelen, zelfs inhoge belasting, lage snelheid, kan een superieure prestatie produceren.
Niet-standaardlagers Metrische eenheden C86300 BRONZE BUSHINGS & PLATE
Het VIIPLUS CHINA Glijlagersysteemkan bronzen mouw bushing, Flanged Bearing,wasser, skateboard, half bushing en andere producten volgens de keuze van klanten van China, Duitsland, Japan, de Verenigde Staten en andere landen.Volgens de eisen van de klant in de binnen- en buitenwand verwerking van verschillende olie groef & olie gat, kan ook de verwerking van figuren.
Vaste smeermiddelen glijlagers & plug grafiet bushings zelf smeer bushings & Gleitlager, kenmerkend
VSB-50 Zelfglijdende metalen lagers van massief brons
Gegote bronzen lagers met grafietproppen
CuZn25AI5Mn4Fe3
Structuurkenmerken en toepassingen
VSB-50 Solid Lubricating Bearing wordt geproduceerd door middel van versterking van messing datgoede fysieke prestaties en goede capaciteit voor het gieten.Bovendien heeft het messingmateriaal een vrij goede anti-erosie eigenschap in lucht, zoet water en zeewater.Het oppervlak wordt regelmatig en fijn bewerk met stopcontacten waarin een bepaald vast smeermiddel wordt gevuldHet product wordt op grote schaal gebruikt op opeenvolgende giet- en rollmachines, mijnen, schepen, stoommachines, enz.
Vaste smeermiddelen Gegooid Aluminium Brons Lagers Bushings
VSB-50met een gewicht van niet meer dan 10 kg
1. kan lang zonder olie werken
2. Extrem hoog draagvermogen, goede slijtvastheid en lagere wrijving
3Vooral geschikt voor lage snelheid en hoge belasting
4. geschikt voor wisselende, schommelende of intermitterende bewegingen waarbij oliefilm moeilijk te vormen is
5Goed chemisch bestand en corrosiebestendige eigenschappen
6. kan worden gebruikt in een breed temperatuurbereik van -40°C tot +300°C
VSB-50Het materiaal is gemaakt van sterk gegoten brons met speciale vaste smeermiddelen.Het basismetaal weerstaat hoge belastingen en de vaste smeermiddelen zorgen voor zelfglijningHet lager vertoont uitstekende prestaties zonder vooraf smeeren onder extreme hoge/lage temperatuur met lage snelheid.met name voor hoge belastingen, intermitterend van oscillerende beweging.
|
Graad |
50# |
50S1 |
50S2 |
50S3 |
650S5 |
|
Materiaal |
CuZn25AI5Mn4Fe3 |
C0Sn5Pb5Zn5 |
CuAI10Ni5Fe5 |
CuSn12 |
CuZn25AI5Mn4Fe3 |
|
Dichtheid |
8 |
8.9 |
7.8 |
8.9 |
8 |
|
Hardheid |
≥ 210 |
≥ 70 |
≥ 150 |
≥ 75 |
≥235 |
|
Treksterkte |
≥ 750 |
≥ 250 |
≥ 500 |
≥ 270 |
≥ 800 |
|
Kracht van de uitlaat |
≥ 450 |
≥ 90 |
≥ 260 |
≥ 150 |
≥ 450 |
|
Verlenging |
≥ 12 |
≥ 13 |
≥ 10 |
≥ 5 |
≥ 8 |
|
Coëfficiënt o lineaire uitbreiding |
1.9 × 10-5/°C |
1.8 × 10-5/°C |
1.6 × 10-5/°C |
1.8 × 10-5/°C |
1.9 × 10-5/°C |
|
Max. Tijd. |
-40°C tot +300°C |
-40°C tot +400°C |
-40°C tot +400°C |
-40°C tot +400°C |
-40°C tot +300°C |
|
Max.dynamische belasting |
100 |
60 |
50 |
70 |
120 |
|
Max.snelheid ((droog) |
15 |
10 |
20 |
10 |
15 |
|
N/mm2*m/s ((Lubricatie) |
200 |
60 |
60 |
80 |
200 |
|
Compressievervorming |
< 0,01 mm |
< 0,05 mm |
< 0,04 mm |
< 0,05 mm |
< 0,005 mm |
|
d
|
D
|
IDF7
|
ODm6
|
L-Nee.10
-Nee.30 |
|||||||||||||||
|
8
|
10
|
12
|
15
|
16
|
20
|
25
|
30
|
35
|
40
|
50
|
60
|
70
|
80
|
||||||
|
8
|
12
|
8
|
+0.028
+0.013 |
12
|
+0.018
+0.007 |
081208
|
081210
|
081212
|
081215
|
|
|
|
|
|
|
|
|
|
|
|
10
|
14
|
10
|
14
|
101408
|
101410
|
101412
|
101415
|
|
101420
|
|
|
|
|
|
|
|
|
||
|
12
|
18
|
12
|
+0.034
+0.016 |
18
|
|
121810
|
121812
|
121815
|
121816
|
121820
|
121825
|
121830
|
|
|
|
|
|
|
|
|
13
|
19
|
13
|
19
|
+0.021
+0.008 |
|
131910
|
|
131915
|
131916
|
|
|
|
|
|
|
|
|
|
|
|
14
|
20
|
14
|
20
|
|
142010
|
142012
|
142015
|
|
142020
|
142025
|
142030
|
|
|
|
|
|
|
||
|
15
|
21
|
15
|
21
|
|
152110
|
152112
|
152115
|
152116
|
152120
|
152125
|
152130
|
|
|
|
|
|
|
||
|
16
|
22
|
16
|
22
|
|
162210
|
162212
|
162215
|
162216
|
162220
|
162225
|
162230
|
162235
|
162240
|
|
|
|
|
||
|
18
|
24
|
18
|
24
|
|
|
182412
|
182415
|
182416
|
182420
|
182425
|
182430
|
182435
|
182440
|
|
|
|
|
||
|
20
|
28
|
20
|
+0.041
+0.020 |
28
|
|
202810
|
202812
|
202815
|
202816
|
202820
|
202825
|
202830
|
202835
|
202840
|
202850
|
|
|
|
|
|
22
|
32
|
22
|
32
|
+0.025
+0.009 |
|
|
223212
|
223215
|
|
223220
|
223225
|
|
|
|
|
|
|
|
|
|
25
|
33
|
25
|
33
|
|
|
253312
|
253315
|
253316
|
253320
|
253325
|
253330
|
253335
|
253340
|
253350
|
253360
|
|
|
||
|
30
|
38
|
30
|
38
|
|
|
303812
|
303815
|
|
303820
|
303825
|
303830
|
303835
|
303840
|
303850
|
303860
|
|
|
||
|
35
|
45
|
35
|
+0.050
+0.025 |
45
|
|
|
|
|
|
354520
|
354525
|
354530
|
354535
|
354540
|
354550
|
354560
|
|
|
|
|
40
|
50
|
40
|
50
|
|
|
|
|
|
405020
|
405025
|
405030
|
405035
|
405040
|
405050
|
405060
|
405070
|
405080
|
||
|
45
|
55
|
45
|
55
|
+0.030
+0.011 |
|
|
|
|
|
|
|
455530
|
455535
|
455540
|
455550
|
455560
|
|
|
|
|
50
|
60
|
50
|
60
|
|
|
|
|
|
|
|
506030
|
506035
|
506040
|
506050
|
506060
|
506070
|
506080
|
||
|
d
|
D
|
IDF7
|
ODm6
|
L-Nee.10
-Nee.30 |
|||||||||||||
|
30
|
35
|
40
|
50
|
60
|
70
|
80
|
100
|
120
|
130
|
140
|
150
|
||||||
|
50
|
62
|
50
|
+0.050
+0.025 |
62
|
+0.030
+0.011 |
506230
|
506235
|
506240
|
506250
|
506260
|
506270
|
|
|
|
|
|
|
|
50
|
65
|
50
|
65
|
206530
|
|
506540
|
506550
|
506560
|
506570
|
506580
|
5065100
|
|
|
|
|
||
|
55
|
70
|
55
|
+0.060
+0.030 |
70
|
|
|
557040
|
557050
|
557060
|
557070
|
|
|
|
|
|
|
|
|
60
|
74
|
60
|
74
|
607430
|
607435
|
607440
|
607450
|
607460
|
607470
|
607480
|
|
|
|
|
|
||
|
60
|
75
|
60
|
75
|
607530
|
607535
|
607540
|
607550
|
607560
|
607570
|
607580
|
6075100
|
|
|
|
|
||
|
63
|
75
|
63
|
75
|
|
|
|
|
637560
|
637570
|
637580
|
|
|
|
|
|
||
|
65
|
80
|
65
|
80
|
|
|
|
658050
|
658060
|
658070
|
658080
|
|
|
|
|
|
||
|
70
|
85
|
70
|
85
|
+0.035
+0.013 |
|
708535
|
708540
|
708550
|
708560
|
708570
|
708580
|
7085100
|
|
|
|
|
|
|
70
|
90
|
70
|
90
|
|
|
|
709050
|
709060
|
709070
|
709080
|
|
|
|
|
|
||
|
75
|
90
|
75
|
90
|
|
|
|
|
759060
|
759070
|
759080
|
7590100
|
|
|
|
|
||
|
75
|
95
|
75
|
95
|
|
|
|
|
759560
|
759570
|
759580
|
7595100
|
|
|
|
|
||
|
80
|
96
|
80
|
96
|
|
|
809640
|
809650
|
809660
|
809670
|
809680
|
8096100
|
8096120
|
|
|
|
||
|
80
|
100
|
80
|
+0.071
+0.036 |
100
|
|
|
8010040
|
8010050
|
8010060
|
8010070
|
8010080
|
80100100
|
80100120
|
|
80100140
|
|
|
|
90
|
110
|
90
|
110
|
|
|
|
9011050
|
9011060
|
9011070
|
9011080
|
90110100
|
90110120
|
|
|
|
||
|
100
|
120
|
100
|
120
|
|
|
|
|
10012060
|
10012070
|
10012080
|
100120100
|
100120120
|
|
100120140
|
|
||
|
110
|
130
|
110
|
130
|
+0.040
+0.015 |
|
|
|
|
|
|
11013080
|
110130100
|
110130120
|
|
|
|
|
|
120
|
140
|
120
|
140
|
|
|
|
|
|
|
12014080
|
120140100
|
120140120
|
|
120140140
|
|
||
|
125
|
145
|
125
|
+0.083
+0.043 |
145
|
|
|
|
|
|
|
|
125145100
|
125145120
|
|
|
|
|
|
130
|
150
|
130
|
150
|
|
|
|
|
|
|
|
130150100
|
|
130150130
|
|
|
||
|
140
|
160
|
140
|
160
|
|
|
|
|
|
|
|
140160100
|
|
|
140160140
|
|
||
|
150
|
170
|
150
|
170
|
|
|
|
|
|
|
|
150170100
|
|
|
|
150160140
|
||
|
160
|
180
|
160
|
180
|
|
|
|
|
|
|
|
160180100
|
|
|
|
160180150
|
||
|
Productnummer. |
Chemische samenstellingen |
||||||||
|
VSB-50 |
C. |
Zn |
Al |
Fe |
Deeltjes |
- Jawel. |
Ni |
Sn |
Pb |
|
60 tot 66 |
22 tot 28 |
5.0~8.0 |
2.0~4.0 |
2.5 tot 5.0 |
< 0.1 |
< 0.5 |
< 0.2 |
< 0.2 |
|
Buizen van de soort gebruikt voor de vervaardiging van motorvoertuigen
· cilindrische struiken
· Flangenbosjes
· Schuifplaten
Op bestelling vervaardigde lagers: standaardvormen in speciale afmetingen, stuwkranken, flenslagers, halflagers, speciale vormen verkregen door stempelen of diep trekken,op maat gemaakte lagers
Onderhoudsvrij lagers en leidingsbosjes, van brons met vast smeermiddel
| Artikel 7 | Gelijkwaardige code | Innerlijke Ø d |
Buitenste Ø D |
Lange L |
||
| JDB081208 | SOB 8-12-8 | 8 | 12 | 8 | ||
| JDB061012 | SOB 6-10-12 | 6 | 10 | 12 | ||
| JDB081210 | SOB 8-12-10 | 8 | 12 | 10 | ||
| JDB081212 | SOB 8-12-12 | 8 | 12 | 12 | ||
| JDB081215 | SOB 8-12-15 | 8 | 12 | 15 | ||
| JDB101408 | SOB 10-14-8 | 10 | 14 | 8 | ||
| JDB101410 | SOB 10-14-10 | 10 | 14 | 10 | ||
| JDB101412 | SOB 10-14-12 | 10 | 14 | 12 | ||
| JDB101415 | SOB 10-14-15 | 10 | 14 | 15 | ||
| JDB101420 | SOB 10-14-20 | 10 | 14 | 20 | ||
| JDB101510 | SOB 10-15-10 | 10 | 15 | 10 | ||
| JDB121808 | SOB 12-18-8 | 12 | 18 | 8 | ||
| JDB121810 | SOB 12-18-10 | 12 | 18 | 10 | ||
| JDB121812 | SOB 12-18-12 | 12 | 18 | 12 | ||
| JDB121815 | SOB 12-18-15 | 12 | 18 | 15 | ||
| JDB121816 | SOB 12-18-16 | 12 | 18 | 16 | ||
| JDB121819 | SOB 12-18-19 | 12 | 18 | 19 | ||
| JDB121820 | SOB 12-18-20 | 12 | 18 | 20 | ||
| JDB121825 | SOB 12-18-25 | 12 | 18 | 25 | ||
| JDB121830 | SOB 12-18-30 | 12 | 18 | 30 | ||
| JDB131910 | SOB 13-19-10 | 13 | 19 | 10 | ||
| Metrische cilindrische struiken | ||||||
| Onderhoudsvrij lagers en leidingsbosjes, van brons met vast smeermiddel | ||||||
| Artikel 7 | Gelijkwaardige code | Innerlijke Ø d |
Buitenste Ø D |
Lange L |
||
| JDB131912 | SOB 13-19-12 | 13 | 19 | 12 | ||
| JDB131915 | SOB 13-19-15 | 13 | 19 | 15 | ||
| JDB131916 | SOB 13-19-16 | 13 | 19 | 16 | ||
| JDB131920 | SOB 13-19-20 | 13 | 19 | 20 | ||
| JDB131925 | SOB 13-19-25 | 13 | 19 | 25 | ||
| JDB142010 | SOB 14-20-10 | 14 | 20 | 10 | ||
| JDB142012 | SOB 14-20-12 | 14 | 20 | 12 | ||
| JDB142015 | SOB 14-20-15 | 14 | 20 | 15 | ||
| JDB142020 | SOB 14-20-20 | 14 | 20 | 20 | ||
| JDB142025 | SOB 14-20-25 | 14 | 20 | 25 | ||
| JDB142030 | SOB 14-20-30 | 14 | 20 | 30 | ||
| JDB152110 | SOB 15-21-10 | 15 | 21 | 10 | ||
| JDB152112 | SOB 15-21-12 | 15 | 21 | 12 | ||
| JDB152115 | SOB 15-21-15 | 15 | 21 | 15 | ||
| JDB152116 | SOB 15-21-16 | 15 | 21 | 16 | ||
| JDB152120 | SOB 15-21-20 | 15 | 21 | 20 | ||
| JDB152125 | SOB 15-21-25 | 15 | 21 | 25 | ||
| JDB152130 | SOB 15-21-30 | 15 | 21 | 30 | ||
| JDB162210 | SOB 16-22-10 | 16 | 22 | 10 | ||
| JDB162212 | SOB 16-22-12 | 16 | 22 | 12 | ||
| JDB162215 | SOB 16-22-15 | 16 | 22 | 15 | ||
| JDB162216 | SOB 16-22-16 | 16 | 22 | 16 | ||
| JDB162219 | SOB 16-22-19 | 16 | 22 | 19 | ||
| JDB162220 | SOB 16-22-20 | 16 | 22 | 20 | ||
| JDB162225 | SOB 16-22-25 | 16 | 22 | 25 | ||
| JDB162230 | SOB 16-22-30 | 16 | 22 | 30 | ||
| JDB162235 | SOB 16-22-35 | 16 | 22 | 35 | ||
| JDB162240 | SOB 16-22-40 | 16 | 22 | 40 | ||
| JDB172315 | SOB 17-23-15 | 17 | 23 | 15 | ||
| JDB182410 | SOB 18-24-10 | 18 | 24 | 10 | ||
| JDB182412 | SOB 18-24-12 | 18 | 24 | 12 | ||
| JDB182415 | SOB 18-24-15 | 18 | 24 | 15 | ||
| JDB182416 | SOB 18-24-16 | 18 | 24 | 16 | ||
| JDB182420 | SOB 18-24-20 | 18 | 24 | 20 | ||
| JDB182425 | SOB 18-24-25 | 18 | 24 | 25 | ||
| JDB182430 | SOB 18-24-30 | 18 | 24 | 30 | ||
| JDB182435 | SOB 18-24-35 | 18 | 24 | 35 | ||
| JDB182440 | SOB 18-24-40 | 18 | 24 | 40 | ||
| JDB192615 | SOB 19-26-15 | 19 | 26 | 15 | ||
| JDB192620 | SOB 19-26-20 | 19 | 26 | 20 | ||
| JDB202810 | SOB 20-28-10 | 20 | 28 | 10 | ||
| JDB202812 | SOB 20-28-12 | 20 | 28 | 12 | ||
| JDB202815 | SOB 20-28-15 | 20 | 28 | 15 | ||
| JDB202816 | SOB 20-28-16 | 20 | 28 | 16 | ||
| JDB202819 | SOB 20-28-19 | 20 | 28 | 19 | ||
| JDB202820 | SOB 20-28-20 | 20 | 28 | 20 | ||
| Metrische cilindrische struiken | ||||||
| Onderhoudsvrij lagers en leidingsbosjes, van brons met vast smeermiddel | ||||||
| Artikel 7 | Gelijkwaardige code | Innerlijke Ø d |
Buitenste Ø D |
Lange L |
||
| JDB202825 | SOB 20-28-25 | 20 | 28 | 25 | ||
| JDB202830 | SOB 20-28-30 | 20 | 28 | 30 | ||
| JDB202835 | SOB 20-28-35 | 20 | 28 | 35 | ||
| JDB202840 | SOB 20-28-40 | 20 | 28 | 40 | ||
| JDB202850 | SOB 20-28-50 | 20 | 28 | 50 | ||
| JDB203010 | SOB 20-30-10 | 20 | 30 | 10 | ||
| JDB203012 | SOB 20-30-12 | 20 | 30 | 12 | ||
| JDB203015 | SOB 20-30-15 | 20 | 30 | 15 | ||
| JDB203016 | SOB 20-30-16 | 20 | 30 | 16 | ||
| JDB203020 | SOB 20-30-20 | 20 | 30 | 20 | ||
| JDB203025 | SOB 20-30-25 | 20 | 30 | 25 | ||
| JDB203030 | SOB 20-30-30 | 20 | 30 | 30 | ||
| JDB203035 | SOB 20-30-35 | 20 | 30 | 35 | ||
| JDB203040 | SOB 20-30-40 | 20 | 30 | 40 | ||
| JDB203070 | SOB 20-30-70 | 20 | 30 | 70 | ||
| JDB223212 | SOB 22-32-12 | 22 | 32 | 12 | ||
| JDB223215 | SOB 22-32-15 | 22 | 32 | 15 | ||
| JDB223220 | SOB 22-32-20 | 22 | 32 | 20 | ||
| JDB223225 | SOB 22-32-25 | 22 | 32 | 25 | ||
| JDB253312 | SOB 25-33-12 | 25 | 33 | 12 | ||
| JDB253315 | SOB 25-33-15 | 25 | 33 | 15 | ||
| JDB253316 | SOB 25-33-16 | 25 | 33 | 16 | ||
| JDB253320 | SOB 25-33-20 | 25 | 33 | 20 | ||
| JDB253325 | SOB 25-33-25 | 25 | 33 | 25 | ||
| JDB253330 | SOB 25-33-30 | 25 | 33 | 30 | ||
| JDB253335 | SOB 25-33-35 | 25 | 33 | 35 | ||
| JDB253340 | SOB 25-33-40 | 25 | 33 | 40 | ||
| JDB253350 | SOB 25-33-50 | 25 | 33 | 50 | ||
| JDB253360 | SOB 25-33-60 | 25 | 33 | 60 | ||
| JDB253512 | SOB 25-35-12 | 25 | 35 | 12 | ||
| JDB253515 | SOB 25-35-15 | 25 | 35 | 15 | ||
| JDB253516 | SOB 25-35-16 | 25 | 35 | 16 | ||
| JDB253520 | SOB 25-35-20 | 25 | 35 | 20 | ||
| JDB253525 | SOB 25-35-25 | 25 | 35 | 25 | ||
| JDB253530 | SOB 25-35-30 | 25 | 35 | 30 | ||
| JDB253535 | SOB 25-35-35 | 25 | 35 | 35 | ||
| JDB253540 | SOB 25-35-40 | 25 | 35 | 40 | ||
| JDB253550 | SOB 25-35-50 | 25 | 35 | 50 | ||
| JDB283820 | SOB 28-38-20 | 28 | 38 | 20 | ||
| JDB283825 | SOB 28-38-25 | 28 | 38 | 25 | ||
| JDB283830 | SOB 28-38-30 | 28 | 38 | 30 | ||
| JDB283840 | SOB 28-38-40 | 28 | 38 | 40 | ||
| JDB303812 | SOB 30-38-12 | 30 | 38 | 12 | ||
| JDB303815 | SOB 30-38-15 | 30 | 38 | 15 | ||
| JDB303820 | SOB 30-38-20 | 30 | 38 | 20 | ||
| JDB303825 | SOB 30-38-25 | 30 | 38 | 25 | ||
| Metrische cilindrische struiken | ||||||
| Onderhoudsvrij lagers en leidingsbosjes, van brons met vast smeermiddel | ||||||
| Artikel 7 | Gelijkwaardige code | Innerlijke Ø d |
Buitenste Ø D |
Lange L |
||
| JDB303830 | SOB 30-38-30 | 30 | 38 | 30 | ||
| JDB303835 | SOB 30-38-35 | 30 | 38 | 35 | ||
| JDB303840 | SOB 30-38-40 | 30 | 38 | 40 | ||
| JDB303850 | SOB 30-38-50 | 30 | 38 | 50 | ||
| JDB303860 | SOB 30-38-60 | 30 | 38 | 60 | ||
| JDB304012 | SOB 30-40-12 | 30 | 40 | 12 | ||
| JDB304015 | SOB 30-40-15 | 30 | 40 | 15 | ||
| JDB304020 | SOB 30-40-20 | 30 | 40 | 20 | ||
| JDB304025 | SOB 30-40-25 | 30 | 40 | 25 | ||
| JDB304030 | SOB 30-40-30 | 30 | 40 | 30 | ||
| JDB304035 | SOB 30-40-35 | 30 | 40 | 35 | ||
| JDB304040 | SOB 30-40-40 | 30 | 40 | 40 | ||
| JDB304050 | SOB 30-40-50 | 30 | 40 | 50 | ||
| JDB304060 | SOB 30-40-60 | 30 | 40 | 60 | ||
| JDB3,154030 | SOB 31,5-40-30 | 3,15 | 40 | 30 | ||
| JDB3,154040 | SOB 31,5-40-40 | 3,15 | 40 | 40 | ||
| JDB324215 | SOB 32-42-15 | 32 | 42 | 15 | ||
| JDB324220 | SOB 32-42-20 | 32 | 42 | 20 | ||
| JDB324230 | SOB 32-42-30 | 32 | 42 | 30 | ||
| JDB324240 | SOB 32-42-40 | 32 | 42 | 40 | ||
| JDB354420 | SOB 35-44-20 | 35 | 44 | 20 | ||
| JDB354425 | SOB 35-44-25 | 35 | 44 | 25 | ||
| JDB354430 | SOB 35-44-30 | 35 | 44 | 30 | ||
| JDB354435 | SOB 35-44-35 | 35 | 44 | 35 | ||
| JDB354440 | SOB 35-44-40 | 35 | 44 | 40 | ||
| JDB354450 | SOB 35-44-50 | 35 | 44 | 50 | ||
| JDB354460 | SOB 35-44-60 | 35 | 44 | 60 | ||
| JDB354515 | SOB 35-45-15 | 35 | 45 | 15 | ||
| JDB354520 | SOB 35-45-20 | 35 | 45 | 20 | ||
| JDB354525 | SOB 35-45-25 | 35 | 45 | 25 | ||
| JDB354530 | SOB 35-45-30 | 35 | 45 | 30 | ||
| JDB354535 | SOB 35-45-35 | 35 | 45 | 35 | ||
| JDB354540 | SOB 35-45-40 | 35 | 45 | 40 | ||
| JDB354550 | SOB 35-45-50 | 35 | 45 | 50 | ||
| JDB354560 | SOB 35-45-60 | 35 | 45 | 60 | ||
| JDB384830 | SOB 38-48-30 | 38 | 48 | 30 | ||
| JDB384840 | SOB 38-48-40 | 38 | 48 | 40 | ||
| JDB405015 | SOB 40-50-15 | 40 | 50 | 15 | ||
| JDB405020 | SOB 40-50-20 | 40 | 50 | 20 | ||
| JDB405025 | SOB 40-50-25 | 40 | 50 | 25 | ||
| JDB405030 | SOB 40-50-30 | 40 | 50 | 30 | ||
| JDB405035 | SOB 40-50-35 | 40 | 50 | 35 | ||
| JDB405040 | SOB 40-50-40 | 40 | 50 | 40 | ||
| JDB405050 | SOB 40-50-50 | 40 | 50 | 50 | ||
| JDB405060 | SOB 40-50-60 | 40 | 50 | 60 | ||
| JDB405070 | SOB 40-50-70 | 40 | 50 | 70 | ||
| Metrische cilindrische struiken | ||||||
| Onderhoudsvrij lagers en leidingsbosjes, van brons met vast smeermiddel | ||||||
| Artikel 7 | Gelijkwaardige code | Innerlijke Ø d |
Buitenste Ø D |
Lange L |
||
| JDB405080 | SOB 40-50-80 | 40 | 50 | 80 | ||
| JDB405515 | SOB 40-55-15 | 40 | 55 | 15 | ||
| JDB405525 | SOB 40-55-25 | 40 | 55 | 25 | ||
| JDB405530 | SOB 40-55-30 | 40 | 55 | 30 | ||
| JDB405535 | SOB 40-55-35 | 40 | 55 | 35 | ||
| JDB405540 | SOB 40-55-40 | 40 | 55 | 40 | ||
| JDB405550 | SOB 40-55-50 | 40 | 55 | 50 | ||
| JDB405560 | SOB 40-55-60 | 40 | 55 | 60 | ||
| JDB455530 | SOB 45-55-30 | 45 | 55 | 30 | ||
| JDB455535 | SOB 45-55-35 | 45 | 55 | 35 | ||
| JDB455540 | SOB 45-55-40 | 45 | 55 | 40 | ||
| JDB455550 | SOB 45-55-50 | 45 | 55 | 50 | ||
| JDB455560 | SOB 45-55-60 | 45 | 55 | 60 | ||
| JDB455630 | SOB 45-56-30 | 45 | 56 | 30 | ||
| JDB455635 | SOB 45-56-35 | 45 | 56 | 35 | ||
| JDB455640 | SOB 45-56-40 | 45 | 56 | 40 | ||
| JDB455650 | SOB 45-56-50 | 45 | 56 | 50 | ||
| JDB455660 | SOB 45-56-60 | 45 | 56 | 60 | ||
| JDB456030 | SOB 45-60-30 | 45 | 60 | 30 | ||
| JDB456035 | SOB 45-60-35 | 45 | 60 | 35 | ||
| JDB456040 | SOB 45-60-40 | 45 | 60 | 40 | ||
| JDB456050 | SOB 45-60-50 | 45 | 60 | 50 | ||
| JDB456060 | SOB 45-60-60 | 45 | 60 | 60 | ||
| JDB456070 | SOB 45-60-70 | 45 | 60 | 70 | ||
| JDB456080 | SOB 45-60-80 | 45 | 60 | 80 | ||
| JDB506020 | SOB 50-60-20 | 50 | 60 | 20 | ||
| JDB506025 | SOB 50-60-25 | 50 | 60 | 25 | ||
| JDB506030 | SOB 50-60-30 | 50 | 60 | 30 | ||
| JDB506035 | SOB 50-60-35 | 50 | 60 | 35 | ||
| JDB506040 | SOB 50-60-40 | 50 | 60 | 40 | ||
| JDB506050 | SOB 50-60-50 | 50 | 60 | 50 | ||
| JDB506060 | SOB 50-60-60 | 50 | 60 | 60 | ||
| JDB506070 | SOB 50-60-70 | 50 | 60 | 70 | ||
| JDB506080 | SOB 50-60-80 | 50 | 60 | 80 | ||
| JDB506230 | SOB 50-62-30 | 50 | 62 | 30 | ||
| JDB506235 | SOB 50-62-35 | 50 | 62 | 35 | ||
| JDB506240 | SOB 50-62-40 | 50 | 62 | 40 | ||
| JDB506250 | SOB 50-62-50 | 50 | 62 | 50 | ||
| JDB506260 | SOB 50-62-60 | 50 | 62 | 60 | ||
| JDB506270 | SOB 50-62-70 | 50 | 62 | 70 | ||
| JDB506280 | SOB 50-62-80 | 50 | 62 | 80 | ||
| JDB506530 | SOB 50-65-30 | 50 | 65 | 30 | ||
| JDB506540 | SOB 50-65-40 | 50 | 65 | 40 | ||
| JDB506550 | SOB 50-65-50 | 50 | 65 | 50 | ||
| JDB506560 | SOB 50-65-60 | 50 | 65 | 60 | ||
| JDB506570 | SOB 50-65-70 | 50 | 65 | 70 | ||
| Metrische cilindrische struiken | ||||||
| Onderhoudsvrij lagers en leidingsbosjes, van brons met vast smeermiddel | ||||||
| Artikel 7 | Gelijkwaardige code | Innerlijke Ø d |
Buitenste Ø D |
Lange L |
||
| JDB506580 | SOB 50-65-80 | 50 | 65 | 80 | ||
| JDB5065100 | SOB 50-65-100 | 50 | 65 | 100 | ||
| JDB557030 | SOB 55-70-30 | 55 | 70 | 30 | ||
| JDB557035 | SOB 55-70-35 | 55 | 70 | 35 | ||
| JDB557040 | SOB 55-70-40 | 55 | 70 | 40 | ||
| JDB557050 | SOB 55-70-50 | 55 | 70 | 50 | ||
| JDB557060 | SOB 55-70-60 | 55 | 70 | 60 | ||
| JDB557070 | SOB 55-70-70 | 55 | 70 | 70 | ||
| JDB607430 | SOB 60-74-30 | 60 | 74 | 30 | ||
| JDB607435 | SOB 60-74-35 | 60 | 74 | 35 | ||
| JDB607440 | SOB 60-74-40 | 60 | 74 | 40 | ||
| JDB607450 | SOB 60-74-50 | 60 | 74 | 50 | ||
| JDB607460 | SOB 60-74-60 | 60 | 74 | 60 | ||
| JDB607470 | SOB 60-74-70 | 60 | 74 | 70 | ||
| JDB607480 | SOB 60-74-80 | 60 | 74 | 80 | ||
| JDB6074100 | SOB 60-74-100 | 60 | 74 | 100 | ||
| JDB607530 | SOB 60-75-30 | 60 | 75 | 30 | ||
| JDB607535 | SOB 60-75-35 | 60 | 75 | 35 | ||
| JDB607540 | SOB 60-75-40 | 60 | 75 | 40 | ||
| JDB607550 | SOB 60-75-50 | 60 | 75 | 50 | ||
| JDB607560 | SOB 60-75-60 | 60 | 75 | 60 | ||
| JDB607570 | SOB 60-75-70 | 60 | 75 | 70 | ||
| JDB607580 | SOB 60-75-80 | 60 | 75 | 80 | ||
| JDB6075100 | SOB 60-75-100 | 60 | 75 | 100 | ||
| JDB637560 | SOB 63-75-60 | 63 | 75 | 60 | ||
| JDB637570 | SOB 63-75-70 | 63 | 75 | 70 | ||
| JDB637580 | SOB 63-75-80 | 63 | 75 | 80 | ||
| JDB658040 | SOB 65-80-40 | 65 | 80 | 40 | ||
| JDB658050 | SOB 65-80-50 | 65 | 80 | 50 | ||
| JDB658060 | SOB 65-80-60 | 65 | 80 | 60 | ||
| JDB658070 | SOB 65-80-70 | 65 | 80 | 70 | ||
| JDB658080 | SOB 65-80-80 | 65 | 80 | 80 | ||
| JDB708530 | SOB 70-85-30 | 70 | 85 | 30 | ||
| JDB708535 | SOB 70-85-35 | 70 | 85 | 35 | ||
| JDB708540 | SOB 70-85-40 | 70 | 85 | 40 | ||
| JDB708550 | SOB 70-85-50 | 70 | 85 | 50 | ||
| JDB708560 | SOB 70-85-60 | 70 | 85 | 60 | ||
| JDB708570 | SOB 70-85-70 | 70 | 85 | 70 | ||
| JDB708580 | SOB 70-85-80 | 70 | 85 | 80 | ||
| JDB7085100 | SOB 70-85-100 | 70 | 85 | 100 | ||
| JDB709050 | SOB 70-90-50 | 70 | 90 | 50 | ||
| JDB709060 | SOB 70-90-60 | 70 | 90 | 60 | ||
| JDB709070 | SOB 70-90-70 | 70 | 90 | 70 | ||
| JDB709080 | SOB 70-90-80 | 70 | 90 | 80 | ||
| JDB7090100 | SOB 70-90-100 | 70 | 90 | 100 | ||
| JDB759050 | SOB 75-90-50 | 75 | 90 | 50 | ||
| Metrische cilindrische struiken | ||||||
| Onderhoudsvrij lagers en leidingsbosjes, van brons met vast smeermiddel | ||||||
| Artikel 7 | Gelijkwaardige code | Innerlijke Ø d |
Buitenste Ø D |
Lange L |
||
| JDB759060 | SOB 75-90-60 | 75 | 90 | 60 | ||
| JDB759070 | SOB 75-90-70 | 75 | 90 | 70 | ||
| JDB759080 | SOB 75-90-80 | 75 | 90 | 80 | ||
| JDB7590100 | SOB 75-90-100 | 75 | 90 | 100 | ||
| JDB759560 | SOB 75-95-60 | 75 | 95 | 60 | ||
| JDB759570 | SOB 75-95-70 | 75 | 95 | 70 | ||
| JDB759580 | SOB 75-95-80 | 75 | 95 | 80 | ||
| JDB7595100 | SOB 75-95-100 | 75 | 95 | 100 | ||
| JDB809620 | SOB 80-96-20 | 80 | 96 | 20 | ||
| JDB809640 | SOB 80-96-40 | 80 | 96 | 40 | ||
| JDB809650 | SOB 80-96-50 | 80 | 96 | 50 | ||
| JDB809660 | SOB 80-96-60 | 80 | 96 | 60 | ||
| JDB809670 | SOB 80-96-70 | 80 | 96 | 70 | ||
| JDB809680 | SOB 80-96-80 | 80 | 96 | 80 | ||
| JDB8096100 | SOB 80-96-100 | 80 | 96 | 100 | ||
| JDB8096120 | SOB 80-96-120 | 80 | 96 | 120 | ||
| JDB8010040 | SOB 80-100-40 | 80 | 100 | 40 | ||
| JDB8010050 | SOB 80-100-50 | 80 | 100 | 50 | ||
| JDB8010060 | SOB 80-100-60 | 80 | 100 | 60 | ||
| JDB8010070 | SOB 80-100-70 | 80 | 100 | 70 | ||
| JDB8010080 | SOB 80-100-80 | 80 | 100 | 80 | ||
| JDB80100100 | SOB 80-100-100 | 80 | 100 | 100 | ||
| JDB80100120 | SOB 80-100-120 | 80 | 100 | 120 | ||
| JDB80100140 | SOB 80-100-140 | 80 | 100 | 140 | ||
| JDB8510025 | SOB 85-100-25 | 85 | 100 | 25 | ||
| JDB8510060 | SOB 85-100-60 | 85 | 100 | 60 | ||
| JDB8510080 | SOB 85-100-80 | 85 | 100 | 80 | ||
| JDB9011030 | SOB 90-110-30 | 90 | 110 | 30 | ||
| JDB9011050 | SOB 90-110-50 | 90 | 110 | 50 | ||
| JDB9011060 | SOB 90-110-60 | 90 | 110 | 60 | ||
| JDB9011070 | SOB 90-110-70 | 90 | 110 | 70 | ||
| JDB9011080 | SOB 90-110-80 | 90 | 110 | 80 | ||
| JDB9011090 | SOB 90-110-90 | 90 | 110 | 90 | ||
| JDB90110100 | SOB 90-110-100 | 90 | 110 | 100 | ||
| JDB90110120 | SOB 90-110-120 | 90 | 110 | 120 | ||
| JDB100115100 | SOB 100-115-100 | 100 | 115 | 100 | ||
| JDB10012040 | SOB 100-120-40 | 100 | 120 | 40 | ||
| JDB10012050 | SOB 100-120-50 | 100 | 120 | 50 | ||
| JDB10012060 | SOB 100-120-60 | 100 | 120 | 60 | ||
| JDB10012070 | SOB 100-120-70 | 100 | 120 | 70 | ||
| JDB10012080 | SOB 100-120-80 | 100 | 120 | 80 | ||
| JDB10012090 | SOB 100-120-90 | 100 | 120 | 90 | ||
| JDB100120100 | SOB 100-120-100 | 100 | 120 | 100 | ||
| JDB100120120 | SOB 100-120-120 | 100 | 120 | 120 | ||
| JDB100120140 | SOB 100-120-140 | 100 | 120 | 140 | ||
| JDB11013050 | SOB 110-130-50 | 110 | 130 | 50 | ||
| Metrische cilindrische struiken | ||||||
| Onderhoudsvrij lagers en leidingsbosjes, van brons met vast smeermiddel | ||||||
| Artikel 7 | Gelijkwaardige code | Innerlijke Ø d |
Buitenste Ø D |
Lange L |
||
| JDB11013070 | SOB 110-130-70 | 110 | 130 | 70 | ||
| JDB11013080 | SOB 110-130-80 | 110 | 130 | 80 | ||
| JDB110130100 | SOB 110-130-100 | 110 | 130 | 100 | ||
| JDB110130120 | SOB 110-130-120 | 110 | 130 | 120 | ||
| JDB12014070 | SOB 120-140-70 | 120 | 140 | 70 | ||
| JDB12014080 | SOB 120-140-80 | 120 | 140 | 80 | ||
| JDB12014090 | SOB 120-140-90 | 120 | 140 | 90 | ||
| JDB120140100 | SOB 120-140-100 | 120 | 140 | 100 | ||
| JDB120140120 | SOB 120-140-120 | 120 | 140 | 120 | ||
| JDB120140140 | SOB 120-140-140 | 120 | 140 | 140 | ||
| JDB125145100 | SOB 125-145-100 | 125 | 145 | 100 | ||
| JDB125145120 | SOB 125-145-120 | 125 | 145 | 120 | ||
| JDB13015080 | SOB 130-150-80 | 130 | 150 | 80 | ||
| JDB130150100 | SOB 130-150-100 | 130 | 150 | 100 | ||
| JDB130150130 | SOB 130-150-130 | 130 | 150 | 130 | ||
| JDB140160100 | SOB 140-160-100 | 140 | 160 | 100 | ||
| JDB140160140 | SOB 140-160-140 | 140 | 160 | 140 | ||
| JDB150170100 | SOB 150-170-100 | 150 | 170 | 100 | ||
| JDB150170150 | SOB 150-170-150 | 150 | 170 | 150 | ||
| JDB16018080 | SOB 160-180-80 | 160 | 180 | 80 | ||
| JDB160180100 | SOB 160-180-100 | 160 | 180 | 100 | ||
| JDB160180150 | SOB 160-180-150 | 160 | 180 | 150 | ||
| JDB170190100 | SOB 170-190-100 | 170 | 190 | 100 | ||
| JDB170190150 | SOB 170-190-150 | 170 | 190 | 150 | ||
| JDB180200100 | SOB 180-200-100 | 180 | 200 | 100 | ||
| JDB180200150 | SOB 180-200-150 | 180 | 200 | 150 | ||
| JDB190210100 | SOB 190-210-100 | 190 | 210 | 100 | ||
| JDB190210150 | SOB 190-210-150 | 190 | 210 | 150 | ||
| JDB200230150 | SOB 200-230-150 | 200 | 230 | 150 | ||
| JDB200230200 | SOB 200-230-200 | 200 | 230 | 200 | ||
Dit soort lager kan worden toegepastonder droge, hoge temperatuur, hoge druk, corrosieve, water- of andere chemische omgevingenwanneer er geen olie kan worden ingevoerd. Het wordt veel gebruikt in de automobielproductenlijn, waterbouw, dampoort, kunststofindustrie, opeenvolgende gietmachines, staalrollers in de metallurgische industrie,mineraalmachines, schepen, turbogeneratoren, hydraulische turbines en spuitgietmachines...
De producten worden veel gebruikt in continu gietmachines, mijnbouwmachines, schepen, gasturbines enzovoort.
Hydraulische cilinder gieten Bronzen flenstlager met vast smeermiddel
• China Bearing Technologies
• Uw erkende wereldwijde partner voor schuiflagers.
• Samen werken aan oplossingen voor de meest veeleisende lagerapplicaties.
Begin uw projectMet een applicatie-ingenieur
